Home Product LY-OTG02
Basic series

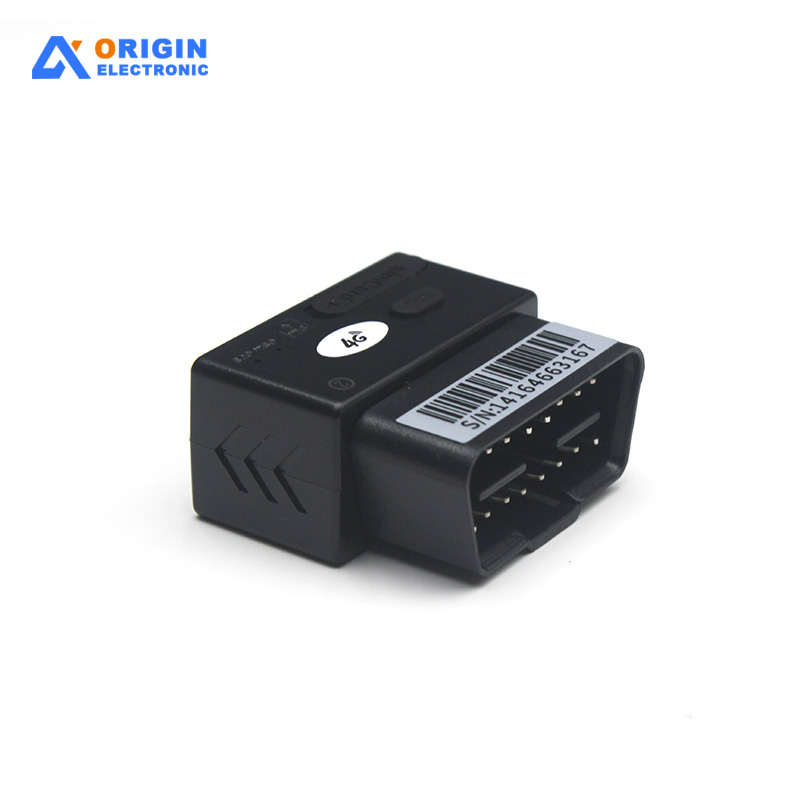

LY-OTG02
Contact us
Operating VoltageDC 3V
Operating Current45~75mA@3V
Low-power Current<15μA
DimensionsL77mm*W41mm*H27mm
Positioning MethodsSatellite (GPS+BeiDou) + Base Station + WiFi
Positioning AccuracyGPS error <10m (varies with terrain/time); Base station error depends on density; WiFi error <30m
Network4G (Bands: B1/B3/B5/B8/B34/B38/B39/B40/B41)
ProtocolUDP
Operating Temp-25℃ ~ +75℃
Storage Temp-40℃ ~ +85℃
Weight100g
Battery Life3-year continuous operation with new batteries (2×CR123A 3000mAh)
Your best GPS positioning device solution
4G ultra long standby car positioning terminal, large capacity backup battery, can be used on standby for three years, supports multiple positioning methods including BD/LBS/GPS/WiFi, small size, and high concealment. Strong magnetic adsorption requires no installation, and there is no need to damage the original vehicle circuit when fixed. During the device's sleep period, the power consumption is less than 3.5uA, and the total shipment volume exceeds 10 million units. The classic continues to sell well.
                           Contact us
ADVANTAGES
4G Network Support
Optical Anti-Tamper
WiFi+BeiDou+GPS+LBS Positioning
Fake Base Station Detection
Core Features
  • Wireless 4G GPS Tracker Real Time GPS Tracking Device For Fleet Management 4

    2G/4G Full Network Coverage

  • Wireless 4G GPS Tracker Real Time GPS Tracking Device For Fleet Management 5

    Imported Battery, 3-Year Standby

  • Wireless 4G GPS Tracker Real Time GPS Tracking Device For Fleet Management 6

    Triple Data Transmission Modes

  • Wireless 4G GPS Tracker Real Time GPS Tracking Device For Fleet Management 7

    Optical Anti-Tamper Alert

  • Wireless 4G GPS Tracker Real Time GPS Tracking Device For Fleet Management 8

    Vehicle Risk Alerts: Separation/Removal/Secondary Mortgage/Abnormal Stay

  • Wireless 4G GPS Tracker Real Time GPS Tracking Device For Fleet Management 9

    Magnet or Velcro Installation Options

Applications
SPECIFICATIONS
Alarm ModeMaximum 4 daily wake-up times, automatically wakes up and sends location data before hibernation
Timed ModeRegular location data transmission at set intervals
Weekly ModeSchedule specific days/times for data transmission
Multi-mode PositioningAutomatic base station positioning when WiFi/GPS unavailable
Serial Port SettingsConfigurable IP/port, APN, device number, alarm/timed/weekly modes
SMS SettingsConfigurable via SMS commands
SMS QueryReturns current device parameters
Tamper AlertDetects light exposure changes and triggers platform alerts (default enabled)
Anti Fake Base StationRejects connection to detected fake base stations
