Video tracking

LY-V920

Name	Model	4CH MDVR
System	Product Name	4 Channel Mobile DVR (HDD)
Operation System	Linux	Graphical Interfaces, Multi-language Support
Video Input	4*1080P/720P/960H	Full Real-time Video
Audio Compression	G711A	Sound and Image Synchronization
HDD Storage	22.5'' SATA HDD (7mm thick), max 14TB (15mm)	Up to 4TB Storage
Alarm Input	12 Channels Independent Input	High Voltage Trigger
USB	2xUSB (front USB3.0)	Fast Data Backup
GPS	Can Expand GPS/GLONASS Module	Live Vehicle Tracking

Product Advantages

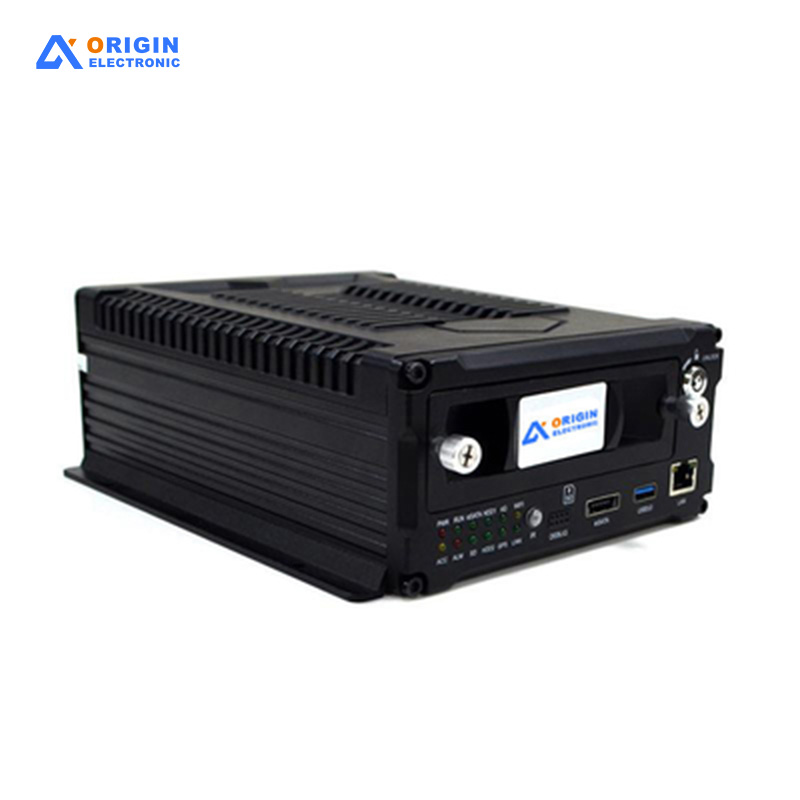

LY-920 MDVR features a robust design with a cast aluminum enclosure. It supports 3G/4G, GPS, G-Sensor, and WiFi, making it a reliable video surveillance system. You can download real-time video and track vehicles live. It also includes standard aviation ports for stable connections, ensuring all functions remain unaffected by vibrations.

Product Introduction

- H.264 Video format.
- 4 video inputs, 1 video output, full real-time video (4 960H / 720P / 960P / 1080P).
- 4 audio inputs, 1 audio output, with video synchronous recording.
- Supports 1*VGA output, 1*CVBS video output.
- Recording image quality adjustable from 1 to 14 levels.
- Uses a dedicated file system to extend hard disk life; data cannot be manually modified, ensuring reliable evidence.
- Pull-type hard disk box, supports two 2.5-inch 7mm or one 2.5-inch 15mm hard drives.
- eSATA*1, USB 3.0*1 for faster data backup and convenient software upgrades.
- Supports 4-channel video and audio playback simultaneously.
- Supports video playback and network monitoring synchronization.
- User password management function.
- 12CH alarm input, 3CH alarm output (2CH relay output, 1CH 12V output), 2CH analog input.
- Supports max 24hrs off delay.
- DC8-36V wide range voltage supply to adapt to vehicle voltage fluctuations.
- Supports two-way shared 12V, 1A power output and 5V, 1A power output.
- RS232 *3, RS485 *2 (PTZ control).
- Two-way voice intercom interface.
- G-sensor function.

Product Features

- Military standards anti-vibration.
- Encrypted.
- Dual HDD SSD Lockable.
- HD 1080P H.264.
- Up to 4TB Storage.
- Live Vehicle Tracking.
- Real-time Video Recording.
- Built-in GPS/Glonass, WIFI, 4G, and G-sensor.

Product Application

High-level MDVR is widely used in logistics vehicles, long-distance passenger transport, dangerous goods transport, bus companies, vehicle rental, taxis, and other industries requiring up to 4 cameras.
